Style A
Features

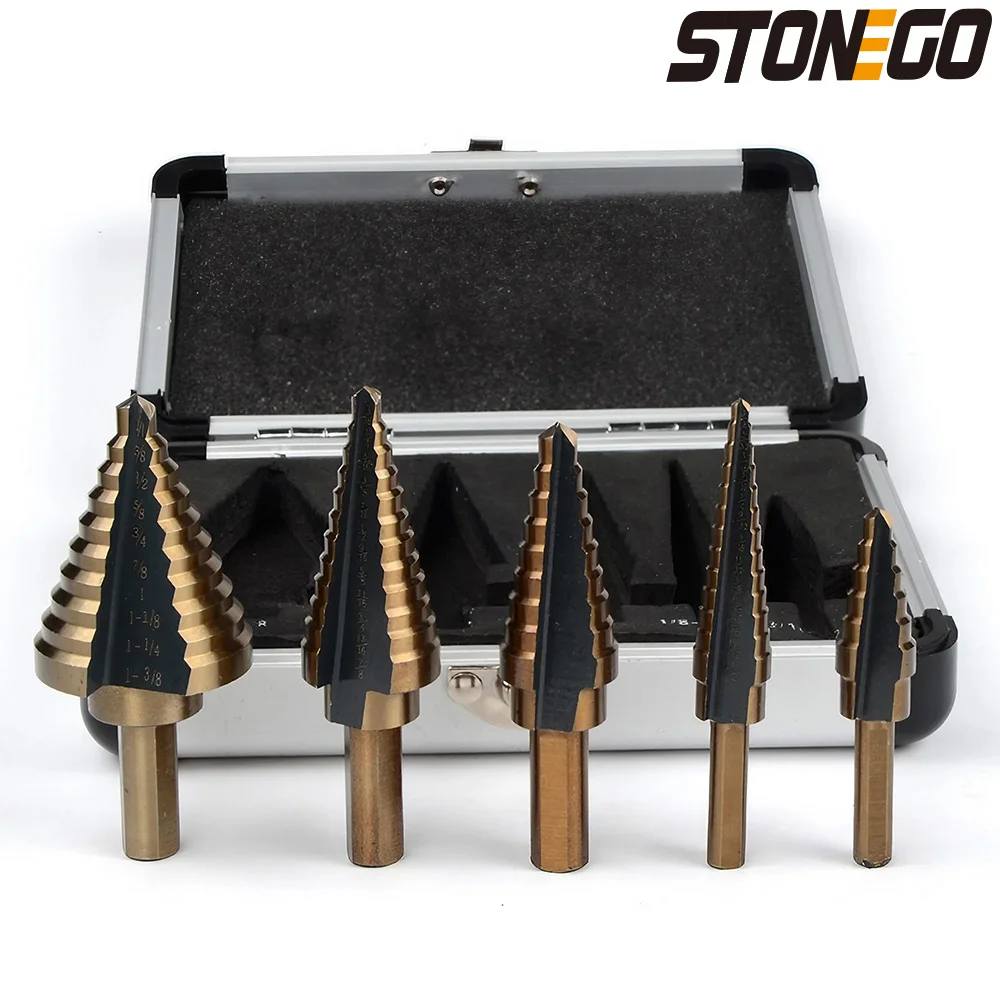

– Stonego Tools 5 piece step drill bits set replaces 50 individual drill bits which saves you a lot of trouble and space.
– Two-fluted design provides smoother and faster cutting.
– Cobalt steel with titanium coating ensures the bits have exceptional durability and will stay sharp for many years.
– The bits are ideal for cutting holes in plastic board, aluminum sheets, wood board, steel sheets etc.
– The bits come supplied in an organized aluminum case for easy storage and transport.
– Stonego tools is a must-have for HVAC professionals and DIY enthusiasts.
Specification
Type: 50-in-1 Drill Bit Set
Material: Cobalt high speed steel, Titanium coating
Overall Weight: 455 g

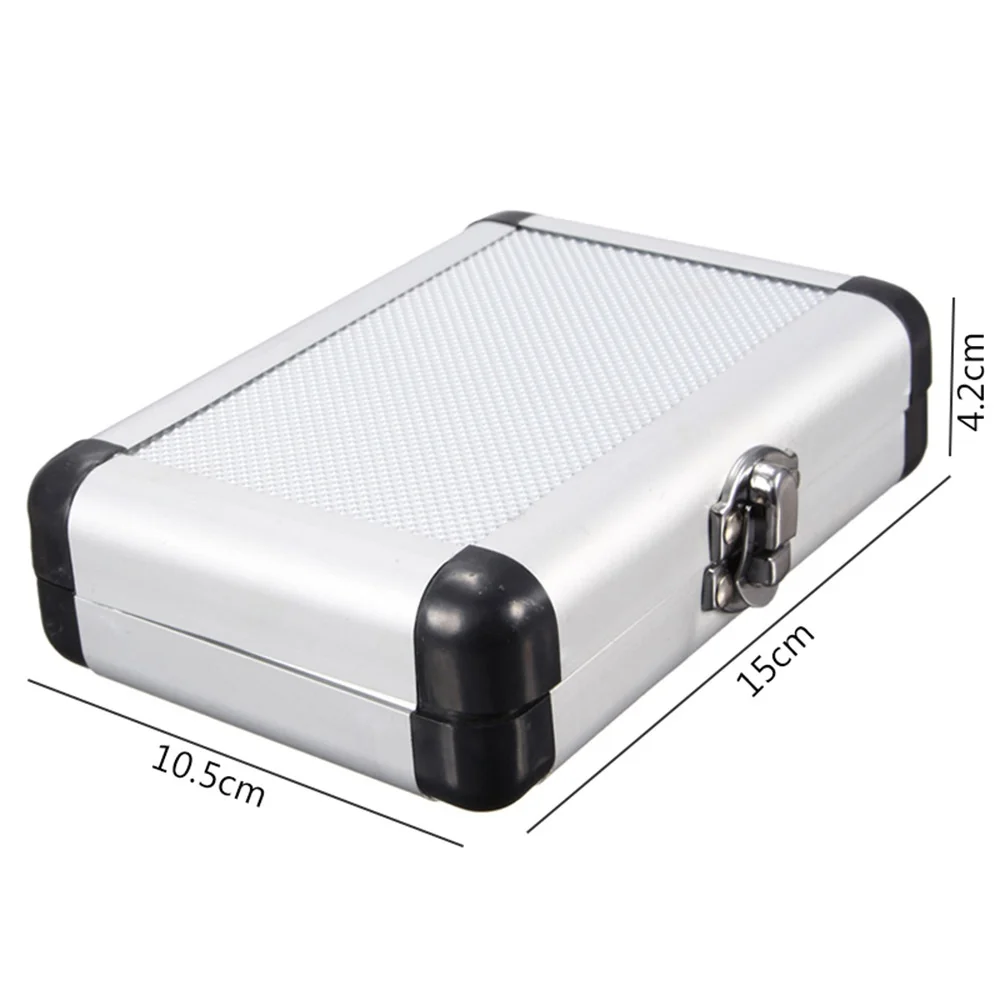

Case Size: 150x110x45 mm

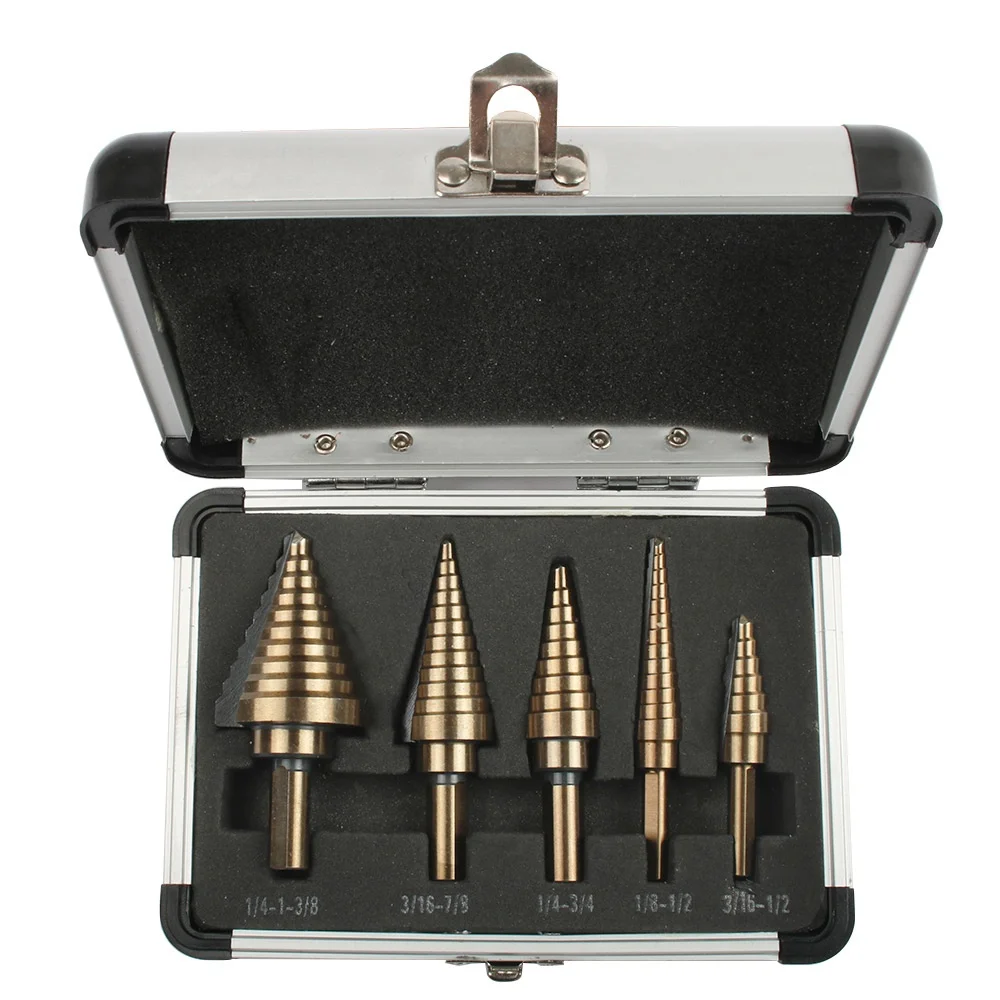

Package Included:
5 x Drill Bit
1 x Aluminum Case

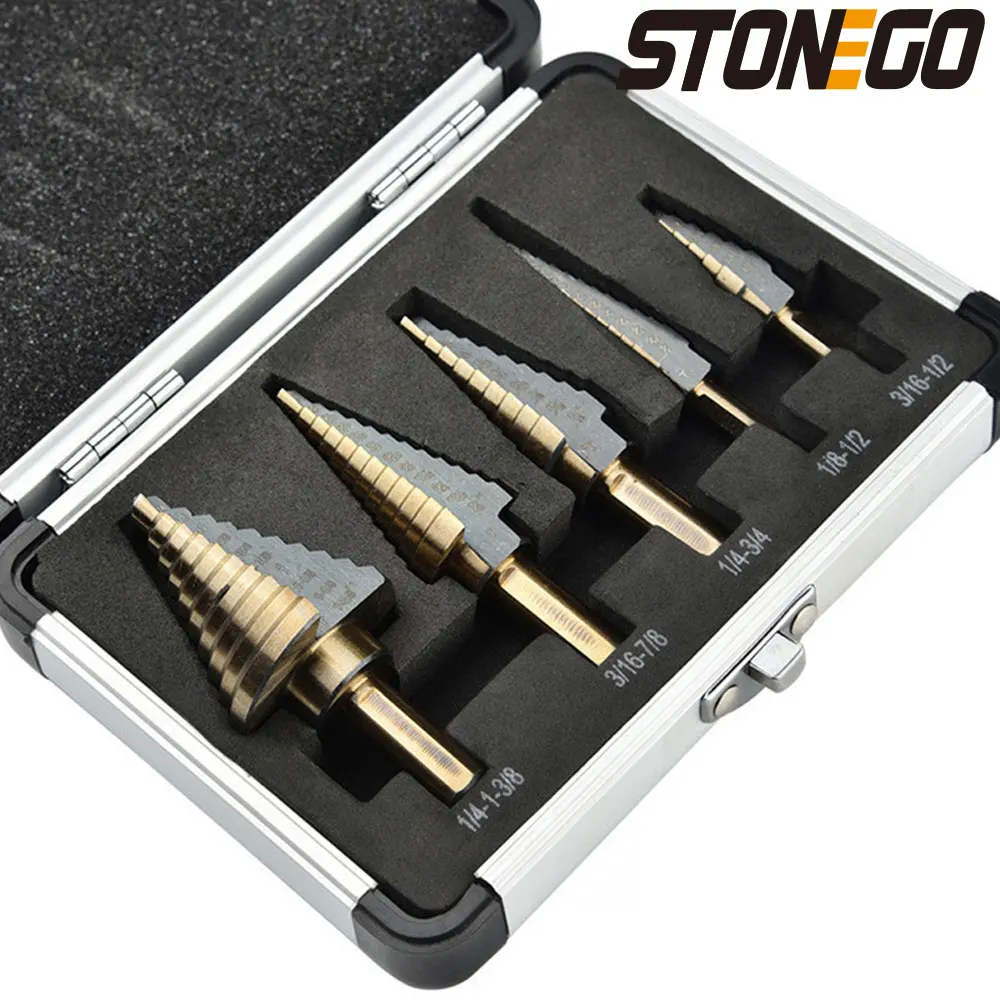

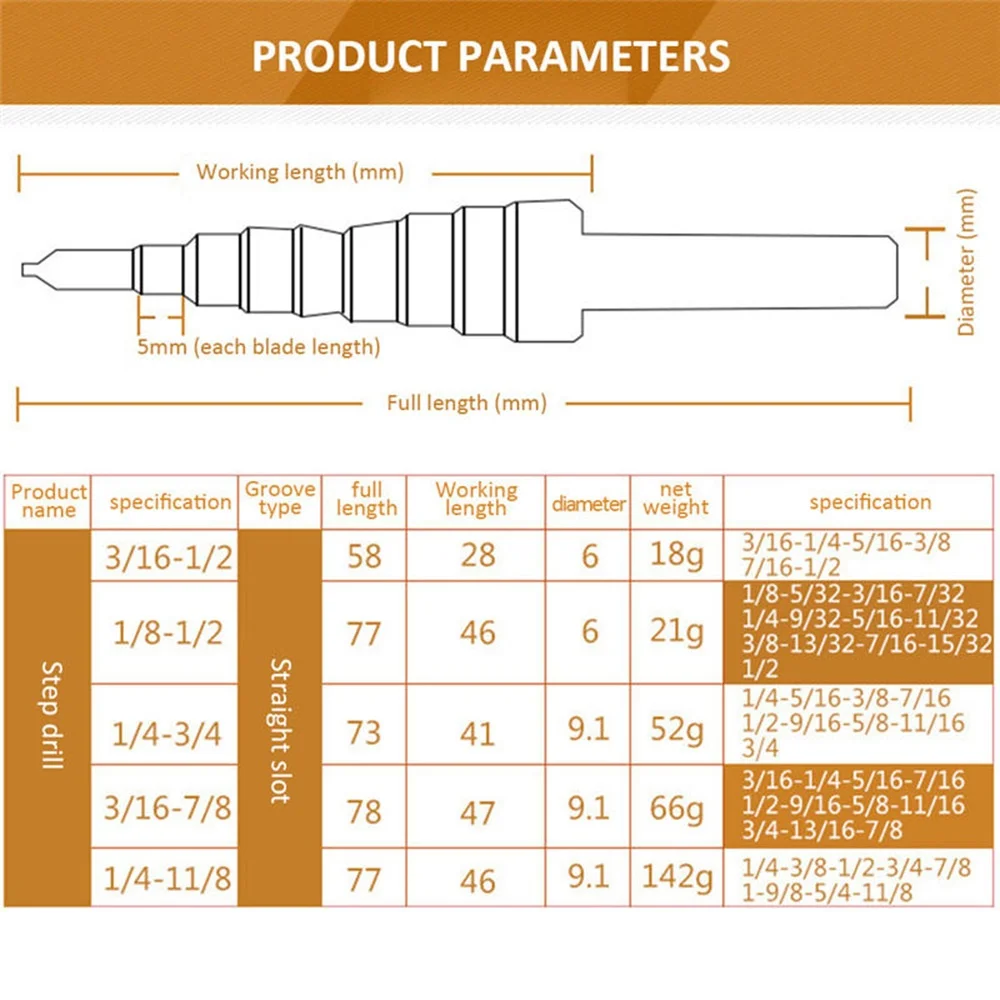

Contents:
Drill Bit 1: (1/4″ – 6 Steps): 3/16, 1/4, 5/16, 3/8, 7/16, 1/2
Drill Bit 2: (1/4″ – 13 Steps): 1/8, 5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 13/32, 7/16, 15/32, 1/2
Drill Bit 3: (3/8″ – 9 Steps): 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4
Drill Bit 4: (3/8″ – 12 Steps): 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8
Drill Bit 5: (3/8″ – 10 Steps): 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8
How To Use Step Drill Bits

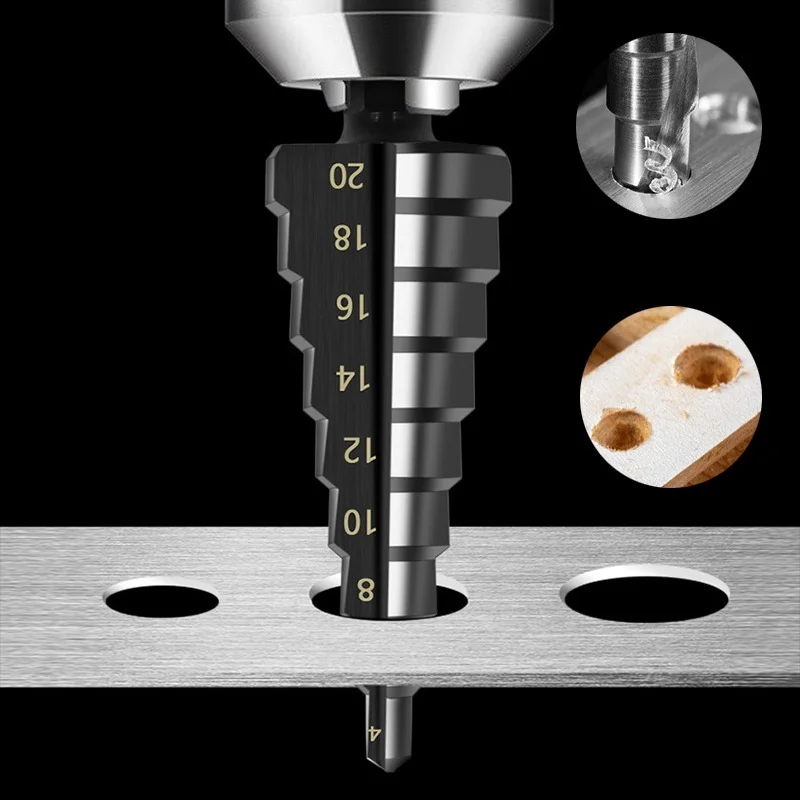

Step drill bits are designed to enlarge a hole as the bit drills through the metal. Each step on a bit is larger in diameter than the previous step. Smaller step drill bits are self-starting and no pilot bit is needed to start the hole. On larger step drill bits you need to pre-drill a hole that is equal in diameter to the smallest step on the bit.
Always remember to wear appropriate eye protection (safety goggles or glasses).
Step 1: Create An Indentation
Use a center punch to create an indentation on the metal. Place the center punch on the surface of the metal and hit it with a hammer. This indentation will provide a place for the drill bit to ‘catch’ so that it doesn’t drift to the wrong location.
Step 2: Drill The Hole
Secure the step drill bit into the chuck of the drill motor. Always create the initial hole with a small step drill bit before moving onto larger step drill bits in order to increase the diameter size of the hole. Apply cutting fluid to the center mark as well as the step drill bit. Align the tip of the bit with the center mark on the surface of the metal. Depress the drill’s trigger to start drilling the hole ensuring to run the step drill bit completely through the metal. Add larger step drill bits as required in order to reach the desired hole diameter. When drilling the hole always remember to apply additional cutting fluid to the step drill bit as well as the edges of the hole to keep them cool.
Style B
Features:
– Made from high quality High Speed Steel
– Ideal for using to cut holes in a variety of materials including steel, brass, wood, plastic, etc.
– Heat treated and highly polished. Drills perfectly round holes in steel, brass, plastic, wood etc.

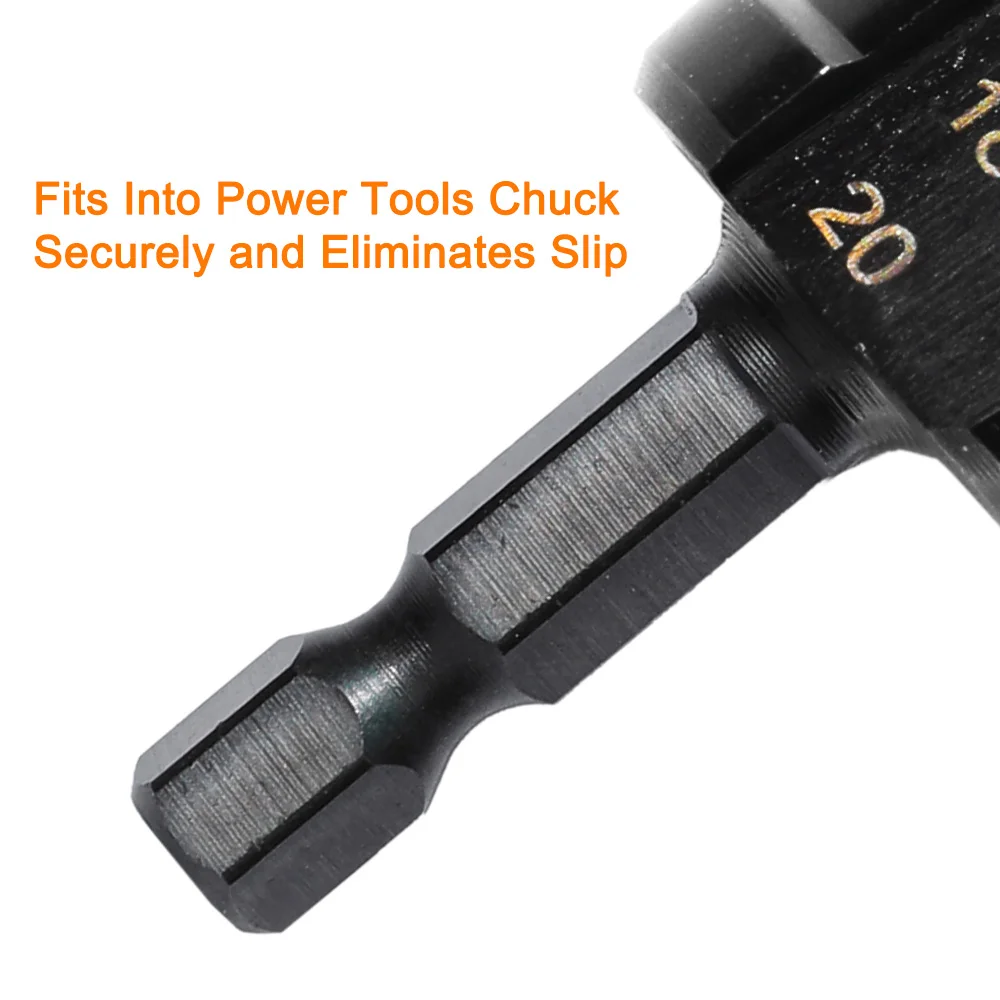

– Hex shanks design in order to prevent slippage when in chuck

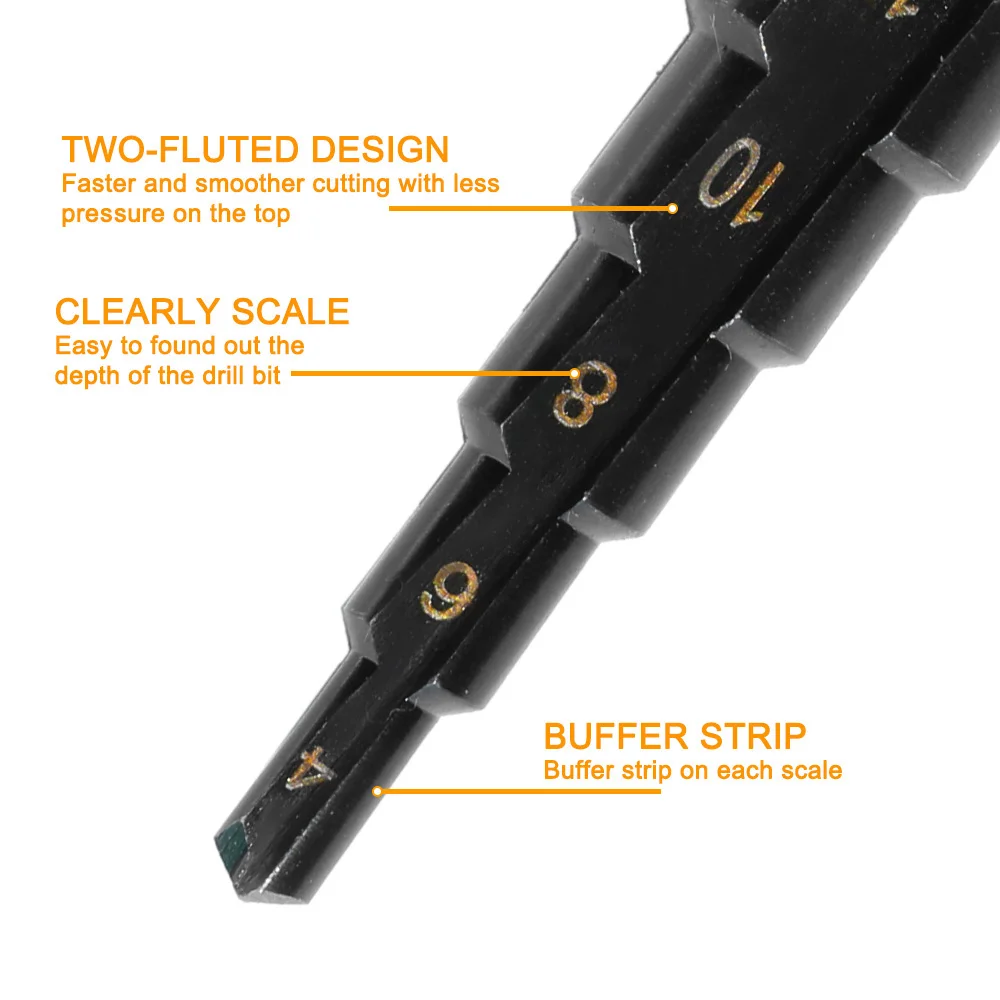

– Two flute design drives faster, smoother and cleaner cuts each step is clearly labeled with the depth diameter in steps

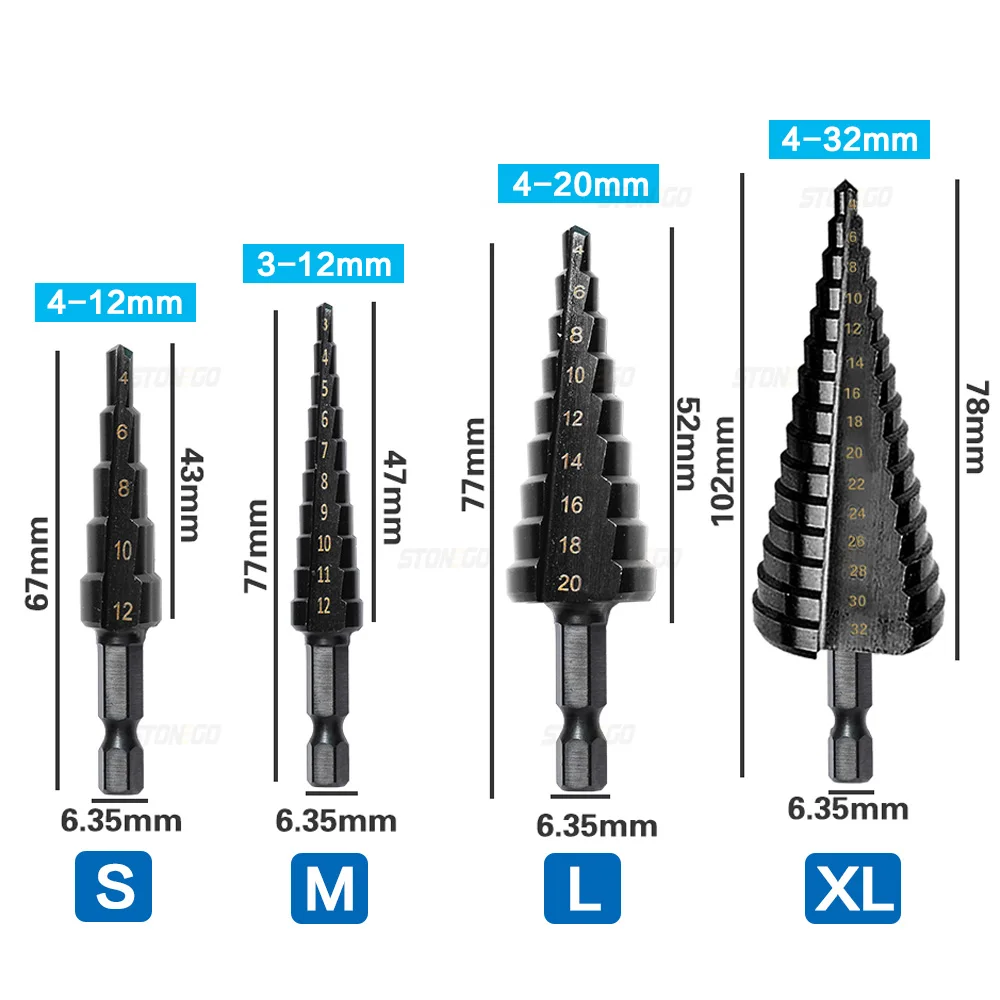

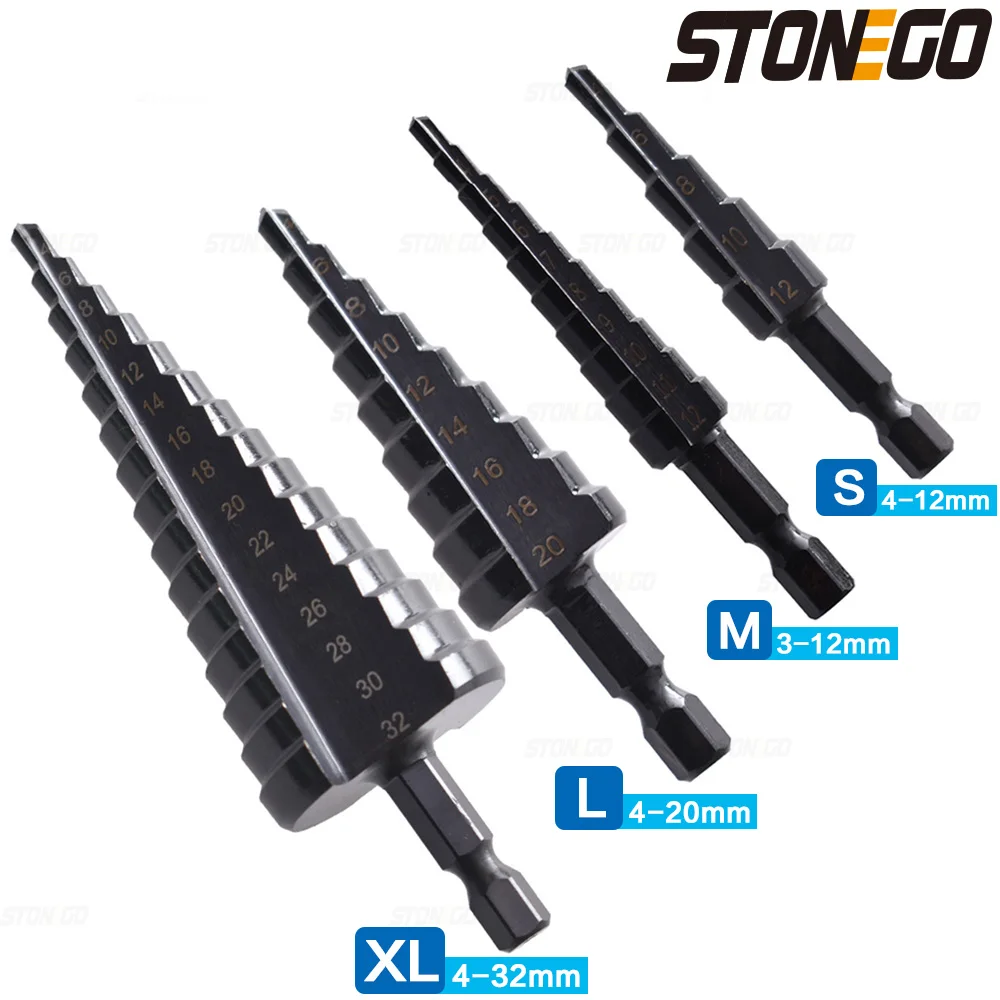

The Cutters Come in the Following Sizes:

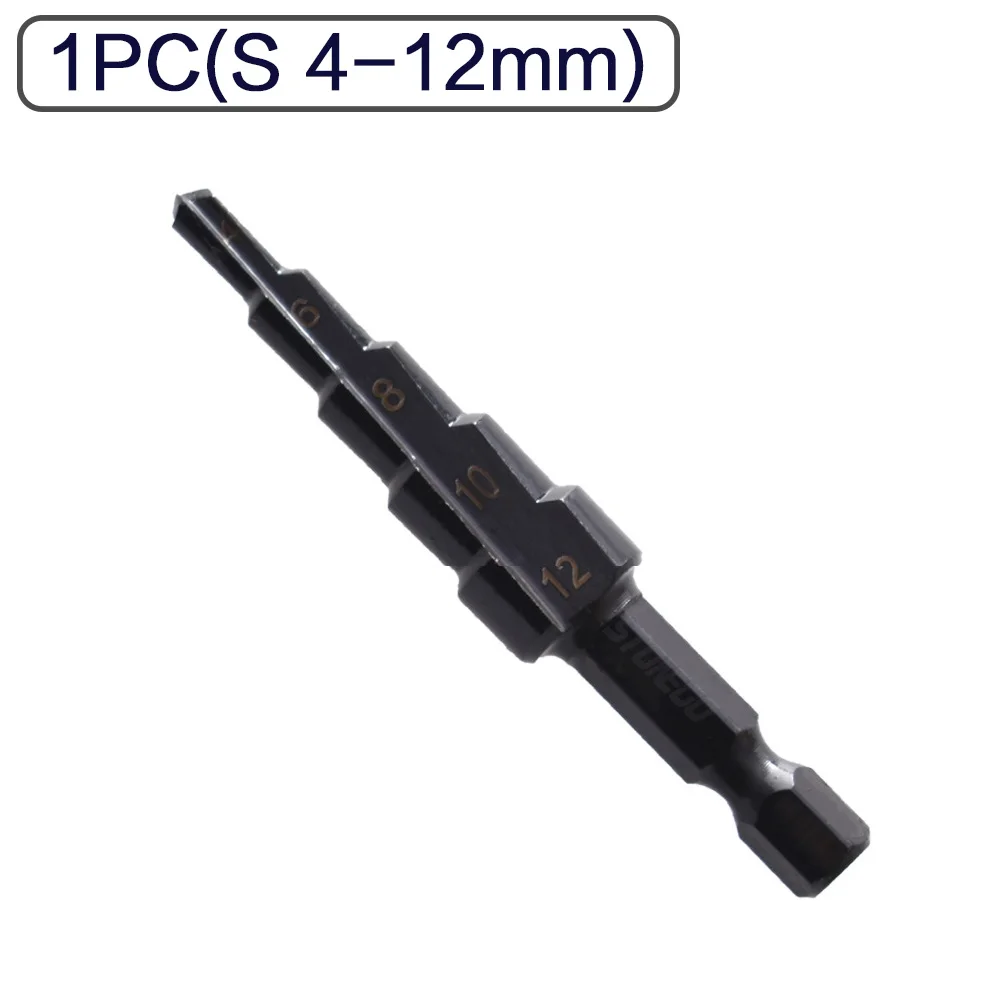

S: 4-12mm (4mm, 6mm, 8mm, 10mm, 12mm) 5 Steps.

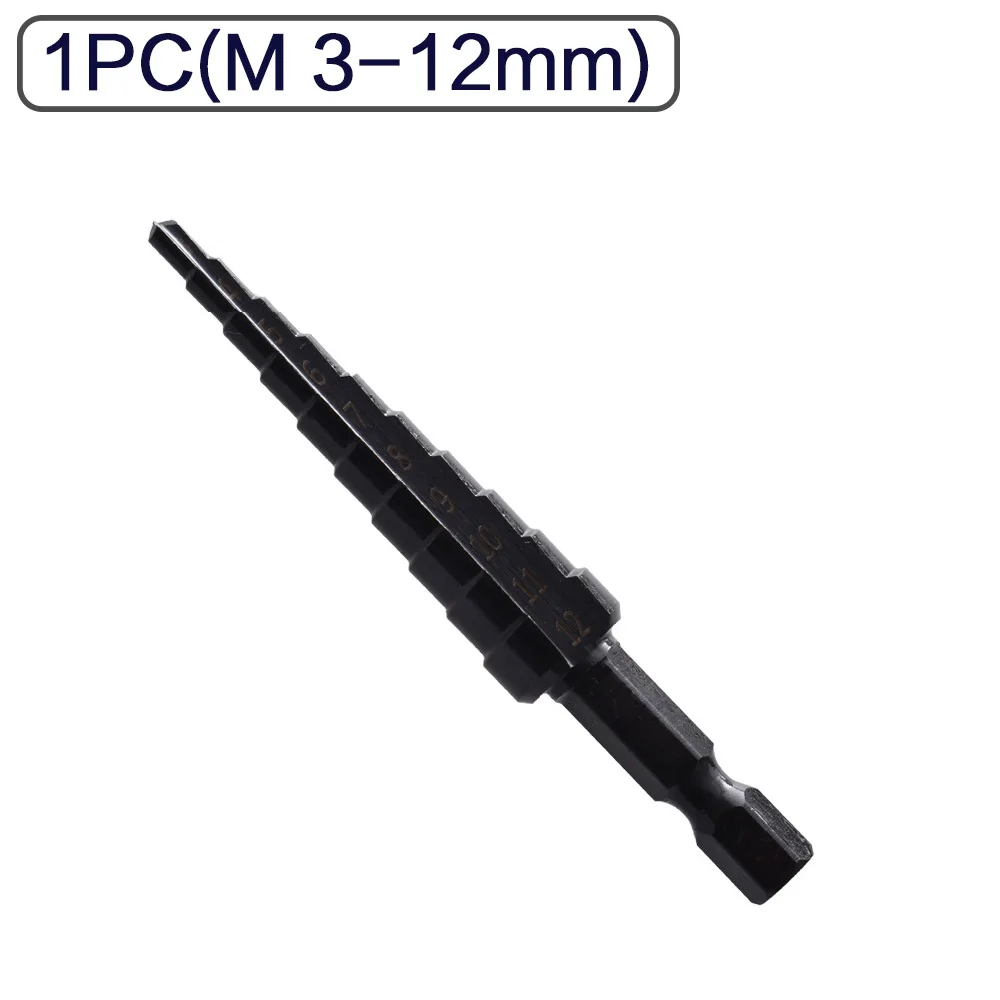

M: 3-12mm (3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm) 10 Steps.

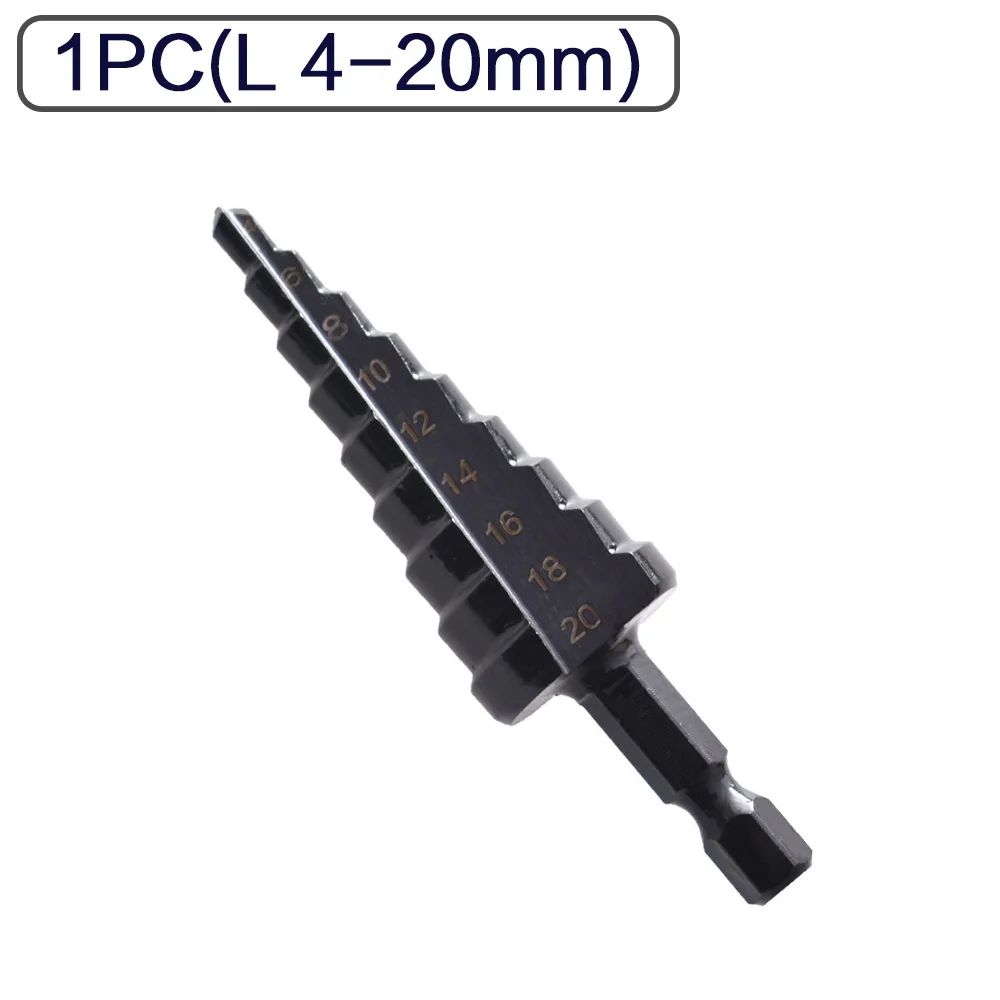

L: 4-20mm (4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm)9 Steps.

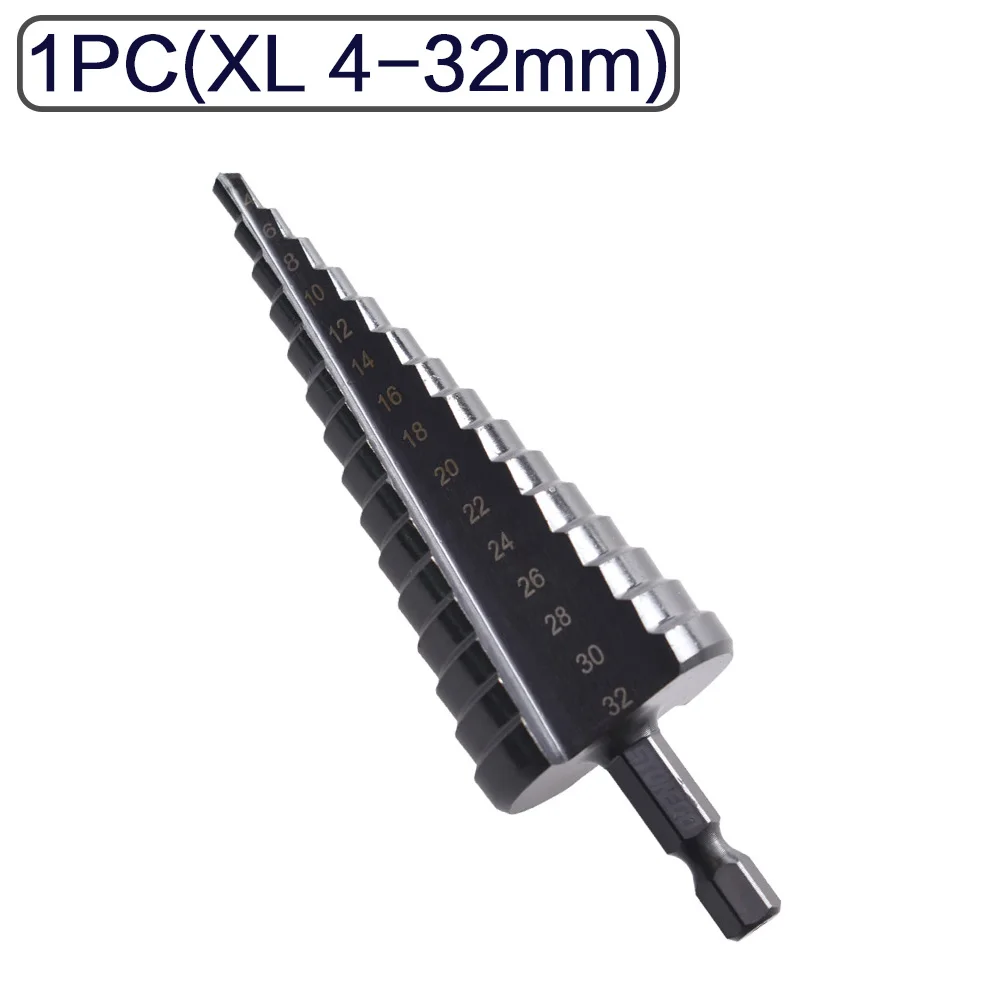

XL: 4-32mm (4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm)15 Steps.
Suitable material:
– Workpieces with general hardness, such as wood, plastic, PVC plate, iron plate, plate thickness within 3mm. Please note that stainless steel and spring steel are not applicable.
Function:

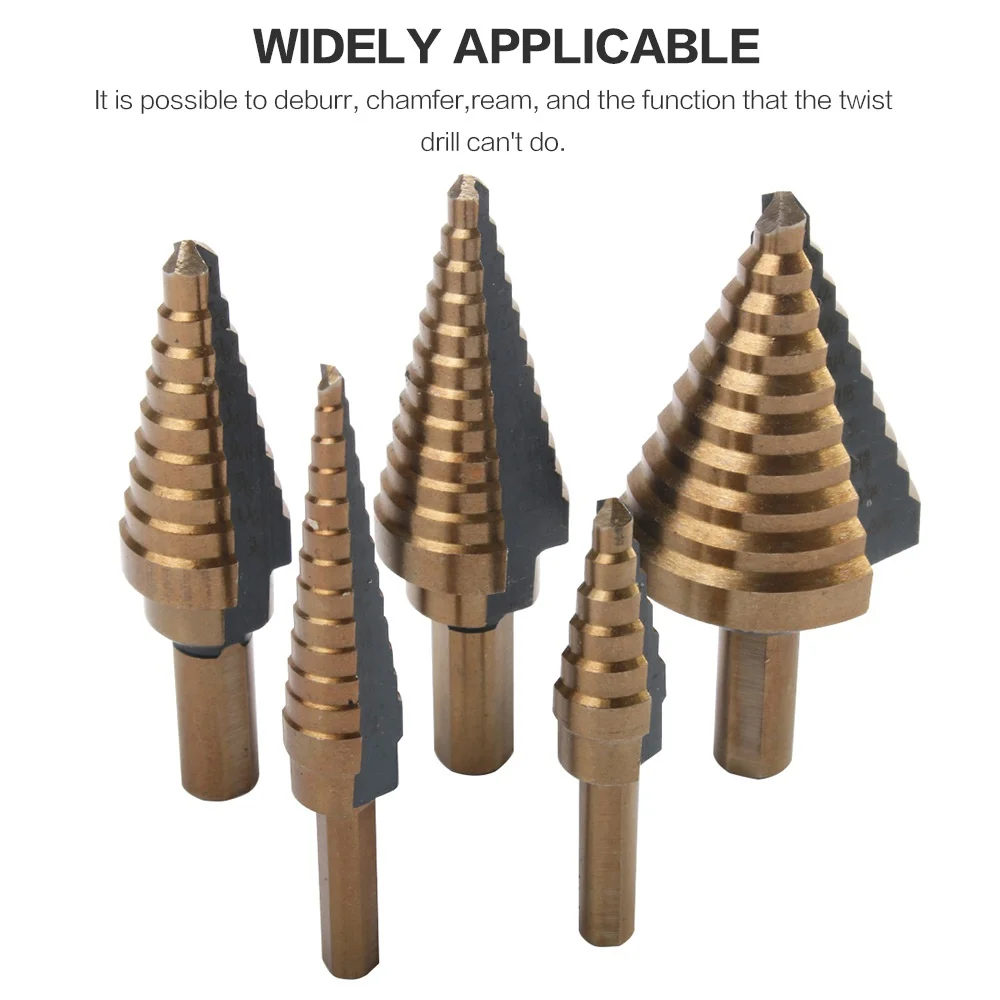

– Deburring, Chamfering, Cutting or expanding holes
– Supporting tools: Pistol drill, Hand drill, Charging drill, Bench drill.
Attention:
– Because of the outer diameter of each step of the step drill is gradually expanded,then the corresponding cutting resistance and linear velocity will also be gradually increased.
– Owing to the step drill is completely dependent on the inclined edge that is only with 1mm length,If the feed speed is too fast when drilling,it will be easily to be annealing caused by abrasion of the oblique edge.
– Please give a downward force when drilling, do not press down too hard to avoid the edge wearing.
– Water injection cooling while working, it can effectively extend the service life of the drill bit, especially in the case of continuous drilling
Package included:
1PC STONEGO Step Drill Bit
