| PCB Size | 17cm * 11.7*2.5cm |
| Unit Packing Way | Wiegand brand package (carton) |
| Case Size | 30.8cm* 24.12cm * 7.45m |
| Accessories | User Manual, warranty card |
| Features | |

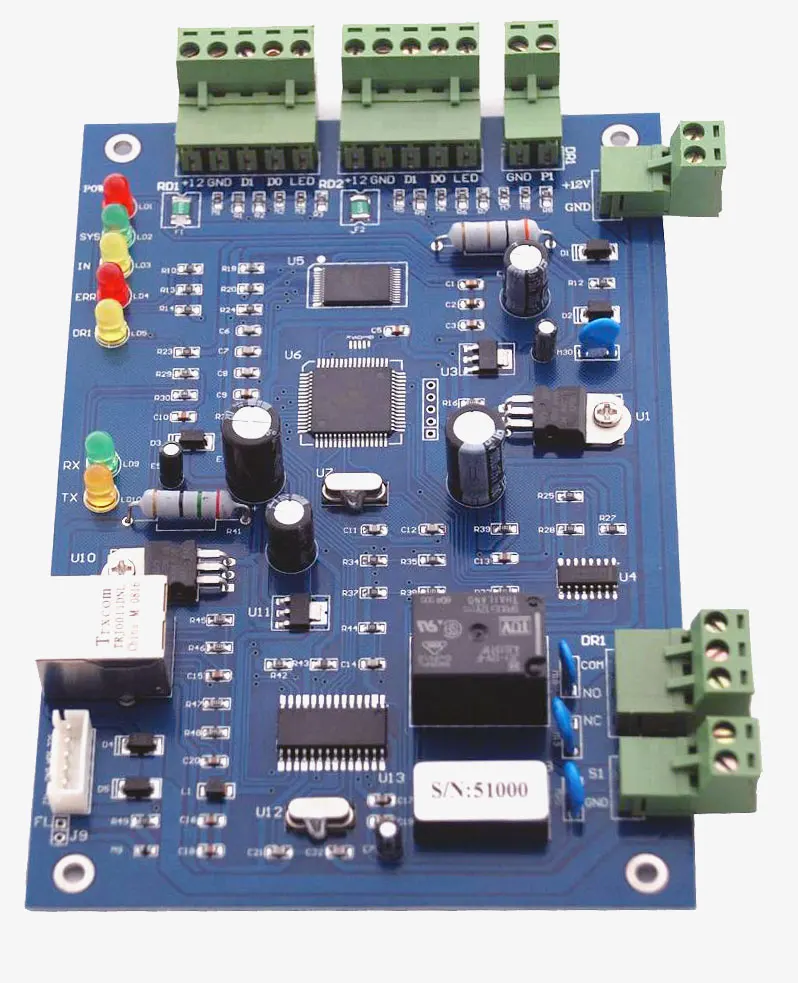

| General Function Introduction | B01 stand alone access controller is a device combined the most advanced chip technology and mechanics of communication. User can connect the controller with one reader for entry and one button for exit; also it allows to connect one reader for entry and one reader for exit to realize more safer door access control request. |
| Operation Interface |
software to use comples functions |
| Language | User can switch the language of the management/control interface between Chinese and English freely. |
| CPU | It adopts 16 bit CPU and can provide fast,stable,convenient and simple operation platform. |
| Support | Support offline work. Apply TCP/IP communication. Allow direct connection with computer via network cable. Support LAN ,remote control |
| Advanced Technology |
We adopt 16bit CPU in this device to ensure fast arithmetic speed, and to establish a high tech platform for future expansion functions. User can manage and control the hardware through any piece of computer via network cables, and even realize remote unlocking, remote management, remote monitoring of the door status through internet. The device can store 100 000 records. This device allows user remote monitor the door status with the help of door sensor, and can remote unlock the door via computer. |
| Humanization | Compared to standard stand alone access controller (without LCD), this device can show you the card user ‘ s name, department the user belongs to; it supports vague search with card number and card user name, and supports event buffer records checking. In cases that there are many card users, this function would be more convenient than standard stand alone access controller. |
| Affordable | This device is priced between standard stand alone access controller and networked access controller. |
| Safe | Compared to standard stand alone access controller, this device separates the reader and the controller to individual parts so to realize higher safety request of your customer. Login user name and password are revisable. |
| Stability | Wrong connection of reader or data cable will not destroy the device or unlock the door illegally. Effect inhibition of static electricity and surge from input and feedback interference from electronic locks. |
| Compatibility | This device is compatible with all RF reader which is with any type of Wiegand stantard communication format available in the market. It supports at most 8 groups of password. User can name for each group of password. |
| Basic Specification for power supply | |
| WGJXDY-03 Power supply and case | The power supply can support the controller, reader and one to two additional electronic locks.It has charge-discharge function. If connect with standard 12V 7AH storage battery, when power cut, it can ensure the door access control system work properly. |
| Specification | |
| Door | 1 |
| Card Reader | 2 |
| Card User q’ty allowed | 20 000 |
| Department q’ty allowed | Max 100 |
| Event buffer | 100 000 |
| Communication | TCP/IP |
| Language | Simplified Chinese and English |
| Database | sql server |
| Delay time for unlocking | 0-999 seconds |
| Password | at most 8 Groups allowed |
| Output Voltage | 12VDC |
| Power | 30W |
| Charge-discharge function | Yes |
software introduce
first step:serch and add controller
second step:add user and card NO
third step:give privilege
fourth step:check privilege via monitor
***************************************************************************************************
the other access function
***************************************************************************************************
***************************************************************************************************
***************************************************************************************************
***************************************************************************************************
***************************************************************************************************
***************************************************************************************************
***************************************************************************************************
***************************************************************************************************
Other function introduce ,eg.time attendance, const meal function
Tip: if you need access alarm input and output function, you add to this 1 pcs expansion I/O board
you can buy it from this link.
we will send it with controller together.
